16. 部署minIO对象存储

# 单节点部署

## 参考文档
http://www.minio.org.cn/docs/minio/kubernetes/upstream/#quickstart-minio-for-kubernetes

## 部署minIO
创建资源
```yaml
[root@k8s-master minio]# cat > minio.yaml << EOF
kind: PersistentVolumeClaim
apiVersion: v1
metadata:
  name: minio-pvc
  namespace: minio
spec:
  storageClassName: nfs-client
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 50Gi
---
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: minio
  name: minio
  namespace: minio
spec:
  selector:
    matchLabels:
      app: minio
  template:
    metadata:
      labels:
        app: minio
    spec:
      containers:
      - name: minio
        image: quay.io/minio/minio:latest
        command:
        - /bin/bash
        - -c
        args:
        - minio server /data --console-address :9090
        volumeMounts:
        - mountPath: /data
          name: data
        ports:
        - containerPort: 9090
          name: console
        - containerPort: 9000
          name: api
      volumes:
      - name: data
        persistentVolumeClaim:
          claimName: minio-pvc
---
apiVersion: v1
kind: Service
metadata:
  name: minio-service
  namespace: minio
spec:
    type: NodePort
    selector:
      app: minio
    ports:
    - name: console
      port: 9090
      protocol: TCP
      targetPort: 9090
      nodePort: 30300
    - name: api
      port: 9000
      protocol: TCP
      targetPort: 9000
      nodePort: 30200
EOF
```
```
[root@k8s-master minio]# kubectl apply -f minio.yaml
deployment.apps/minio created
service/minio-service created
```
使用NodePort方式访问web页面
```bash
[root@k8s-master minio]# kubectl get pod -n minio
NAME                     READY   STATUS    RESTARTS   AGE
minio-86577f8755-l65mf   1/1     Running   0          11m
[root@k8s-master minio]# kubectl get svc -n minio
NAME            TYPE       CLUSTER-IP       EXTERNAL-IP   PORT(S)                         AGE
minio-service   NodePort   10.102.223.132   <none>        9090:30300/TCP,9000:30200/TCP   10m
```

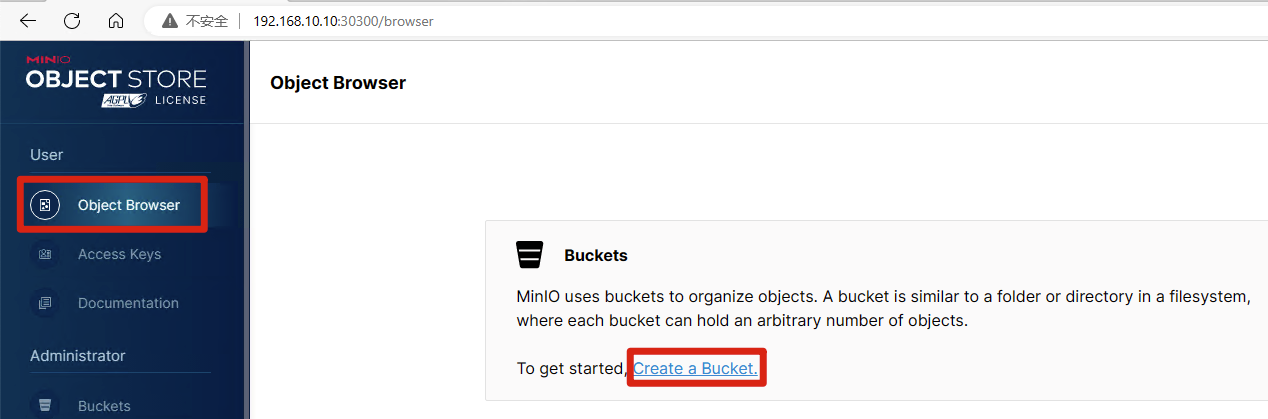

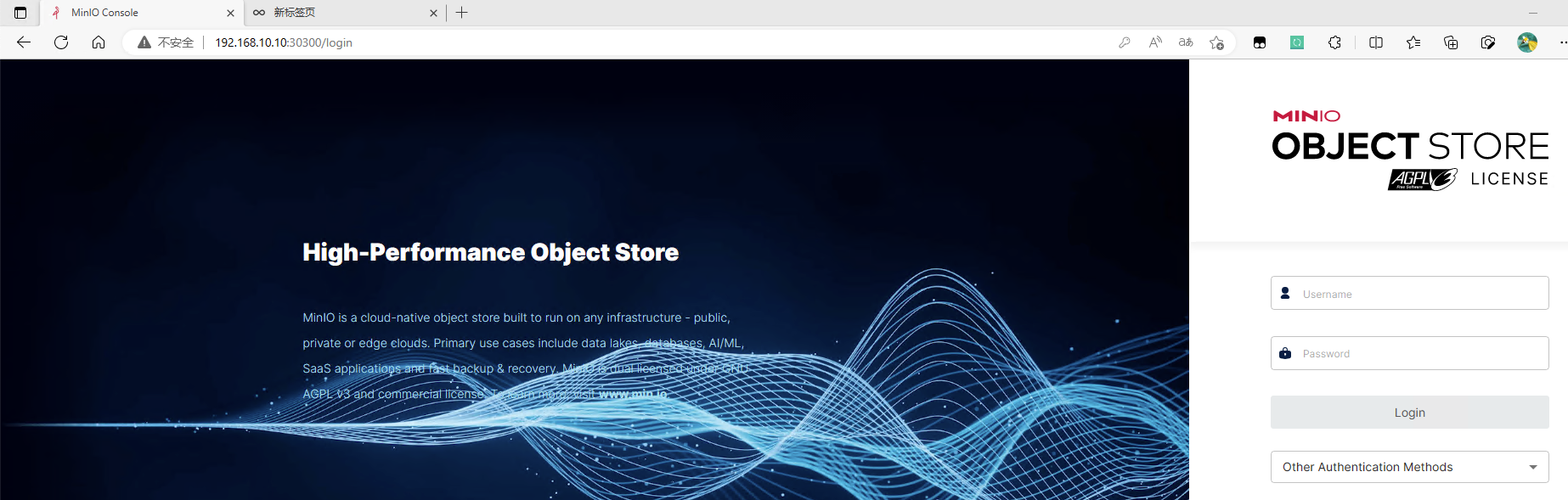

访问k8s节点ip:30300，默认用户名密码都是**minioadmin**

![](/media/202406/2024-06-16_180018_5750210.8879588234308172.png)

使用ingress方式访问
```yaml
[root@k8s-master minio]# cat minio-ingress.yaml
apiVersion: traefik.containo.us/v1alpha1
kind: IngressRoute
metadata:
  name: minio-console
  namespace: minio
spec:
  entryPoints:
  - web
  routes:
  - match: Host(`minio.test.com`) # 域名
    kind: Rule
    services:
      - name: minio-service  # 与svc的name一致
        port: 9090           # 与svc的port一致
---
apiVersion: traefik.containo.us/v1alpha1
kind: IngressRoute
metadata:
  name: minio-api
  namespace: minio
spec:
  entryPoints:
  - web
  routes:
  - match: Host(`minio-api.test.com`) # 域名
    kind: Rule
    services:
      - name: minio-service  # 与svc的name一致
        port: 9000           # 与svc的port一致
[root@k8s-master minio]# kubectl apply -f minio-ingress.yaml
ingressroute.traefik.containo.us/minio-console created
ingressroute.traefik.containo.us/minio-api created
```
添加hosts记录`192.168.10.10 minio.test.com`访问域名即可

# helm部署minIO集群
minIO集群方式部署使用operator或者helm均可。helm部署minIO参考文档：[https://artifacthub.io/packages/helm/bitnami/minio](https://artifacthub.io/packages/helm/bitnami/minio)。

## 集群角色规划
使用分布式方式部署高可用的minIO集群时，驱动器总数至少是4 个，以保证纠删码。我们可以在k8s-work1和k8s-work2上的data1和data2路径存放minIO数据，使用local pv方式持久化数据。
```bash
# 创建数据存放路径
[root@k8s-work1 ~]# mkdir -p /data1/minio
[root@k8s-work1 ~]# mkdir -p /data2/minio
[root@k8s-work2 ~]# mkdir -p /data1/minio
[root@k8s-work2 ~]# mkdir -p /data2/minio
```

## 下载helm包
```bash
[root@k8s-master ~]# helm repo add bitnami https://charts.bitnami.com/bitnami
[root@k8s-master ~]# helm search repo minio
NAME                            CHART VERSION   APP VERSION     DESCRIPTION
bitnami/minio                   14.1.4          2024.3.30       MinIO(R) is an object storage server, compatibl...
[root@k8s-master ~]# helm pull bitnami/minio --untar
[root@k8s-master ~]# cd minio
[root@k8s-master minio]# ls
Chart.lock  charts  Chart.yaml  README.md  templates  values.yaml
```

## 创建sc
provisioner 字段定义为 no-provisioner，这是因为 Local Persistent Volume 目前尚不支持 Dynamic Provisioning 动态生成 PV，所以我们需要提前手动创建 PV。<br />volumeBindingMode 字段定义为 WaitForFirstConsumer，它是 Local Persistent Volume 里一个非常重要的特性，即：延迟绑定。延迟绑定就是在我们提交 PVC 文件时，StorageClass 为我们延迟绑定 PV 与 PVC 的对应关系。
```bash
[root@k8s-master minio]# cat > storageClass.yaml << EOF
apiVersion: storage.k8s.io/v1
kind: StorageClass
metadata:
  name: local-storage
provisioner: kubernetes.io/no-provisioner
volumeBindingMode: WaitForFirstConsumer
EOF
```
```
[root@k8s-master minio]# kubectl apply -f storageClass.yaml
storageclass.storage.k8s.io/local-storage created
[root@k8s-master minio]# kubectl get storageclass
NAME                  PROVISIONER                                         RECLAIMPOLICY   VOLUMEBINDINGMODE      ALLOWVOLUMEEXPANSION   AGE
local-storage         kubernetes.io/no-provisioner                        Delete          WaitForFirstConsumer   false                  19s
```

## 创建pv
pv资源分布如下：

| pv名称 | pvc名称 | 主机 | 路径 | 容量 |
| --- | --- | --- | --- | --- |
| minio-pv1 | data-minio-0 | work1 | /data1/minio | 10G |
| minio-pv2 | data-minio-1 | work1 | /data2/minio | 10G |
| minio-pv3 | data-minio-2 | work2 | /data1/minio | 10G |
| minio-pv4 | data-minio-3 | work2 | /data2/minio | 10G |

```bash
[root@k8s-master minio]# cat > pv.yaml << EOF
apiVersion: v1
kind: PersistentVolume
metadata:
  name: minio-pv1
  labels:
    app: minio-0
spec:
  capacity:
    storage: 10Gi
  volumeMode: Filesystem
  accessModes:
  - ReadWriteOnce
  storageClassName: local-storage # storageClass名称，与前面创建的storageClass保持一致
  local:
    path: /data1/minio # 本地存储路径
  nodeAffinity: # 调度至work1节点
    required:
      nodeSelectorTerms:
      - matchExpressions:
        - key: kubernetes.io/hostname
          operator: In
          values:
          - work1
---
apiVersion: v1
kind: PersistentVolume
metadata:
  name: minio-pv2
  labels:
    app: minio-1
spec:
  capacity:
    storage: 10Gi
  volumeMode: Filesystem
  accessModes:
  - ReadWriteOnce
  storageClassName: local-storage
  local:
    path: /data2/minio
  nodeAffinity:
    required:
      nodeSelectorTerms:
      - matchExpressions:
        - key: kubernetes.io/hostname
          operator: In
          values:
          - work1
---
apiVersion: v1
kind: PersistentVolume
metadata:
  name: minio-pv3
  labels:
    app: minio-2
spec:
  capacity:
    storage: 10Gi
  volumeMode: Filesystem
  accessModes:
  - ReadWriteOnce
  storageClassName: local-storage
  local:
    path: /data1/minio
  nodeAffinity:
    required:
      nodeSelectorTerms:
      - matchExpressions:
        - key: kubernetes.io/hostname
          operator: In
          values:
          - work2
---
apiVersion: v1
kind: PersistentVolume
metadata:
  name: minio-pv4
  labels:
    app: minio-3
spec:
  capacity:
    storage: 10Gi
  volumeMode: Filesystem
  accessModes:
  - ReadWriteOnce
  storageClassName: local-storage
  local:
    path: /data2/minio
  nodeAffinity:
    required:
      nodeSelectorTerms:
      - matchExpressions:
        - key: kubernetes.io/hostname
          operator: In
          values:
          - work2
EOF
```
```
[root@master1 minio]# kubectl apply -f pv.yaml
persistentvolume/minio-pv1 created
persistentvolume/minio-pv2 created
persistentvolume/minio-pv3 created
persistentvolume/minio-pv4 created
```
```
[root@master1 minio]# kubectl get pv | grep minio
minio-pv1                                  10Gi       RWO            Delete           Bound    minio/data-minio-1                              local-storage            9s
minio-pv2                                  10Gi       RWO            Delete           Bound    minio/data-minio-2                              local-storage            9s
minio-pv3                                  10Gi       RWO            Delete           Bound    minio/data-minio-3                              local-storage            9s
minio-pv4                                  10Gi       RWO            Delete           Bound    minio/data-minio-0                              local-storage            9s
```

## 创建pvc
创建的时候注意pvc的名字的构成：pvc的名字 = volume_name-statefulset_name-序号，然后通过selector标签选择，强制将pvc与pv绑定。
```bash
[root@master1 minio]# cat > pvc.yaml << EOF
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: data-minio-0
  namespace: minio
spec:
  accessModes:
  - ReadWriteOnce
  resources:
    requests:
      storage: 10Gi
  storageClassName: local-storage
  selector:
    matchLabels:
      app: minio-0
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: data-minio-1
  namespace: minio
spec:
  accessModes:
  - ReadWriteOnce
  resources:
    requests:
      storage: 10Gi
  storageClassName: local-storage
  selector:
    matchLabels:
      app: minio-1
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: data-minio-2
  namespace: minio
spec:
  accessModes:
  - ReadWriteOnce
  resources:
    requests:
      storage: 10Gi
  storageClassName: local-storage
  selector:
    matchLabels:
      app: minio-2
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: data-minio-3
  namespace: minio
spec:
  accessModes:
  - ReadWriteOnce
  resources:
    requests:
      storage: 10Gi
  storageClassName: local-storage
  selector:
    matchLabels:
      app: minio-3
EOF
```
```
[root@tiaoban minio]# kubectl create ns elk
namespace/minio created
[root@tiaoban minio]# kubectl apply -f pvc.yaml
persistentvolumeclaim/data-minio-0 created
persistentvolumeclaim/data-minio-1 created
persistentvolumeclaim/data-minio-2 created
persistentvolumeclaim/data-minio-3 created
```
```
[root@tiaoban minio]# kubectl get pvc -n minio
NAME           STATUS    VOLUME   CAPACITY   ACCESS MODES   STORAGECLASS    AGE
data-minio-0   Pending                                      local-storage   13s
data-minio-1   Pending                                      local-storage   13s
data-minio-2   Pending                                      local-storage   13s
data-minio-3   Pending                                      local-storage   13s
```

## 修改配置
修改配置values.yaml
```bash
68 image:
69   registry: docker.io
70   repository: bitnami/minio
71   tag: 2024.3.30-debian-12-r0

104 mode: distributed # 集群模式，单节点为standalone，分布式集群为distributed

197 statefulset:
215  replicaCount: 2 # 节点数
218   zones: 1 # 区域数，1个即可
221   drivesPerNode: 2 # 每个节点数据目录数.2节点×2目录组成4节点的mimio集群

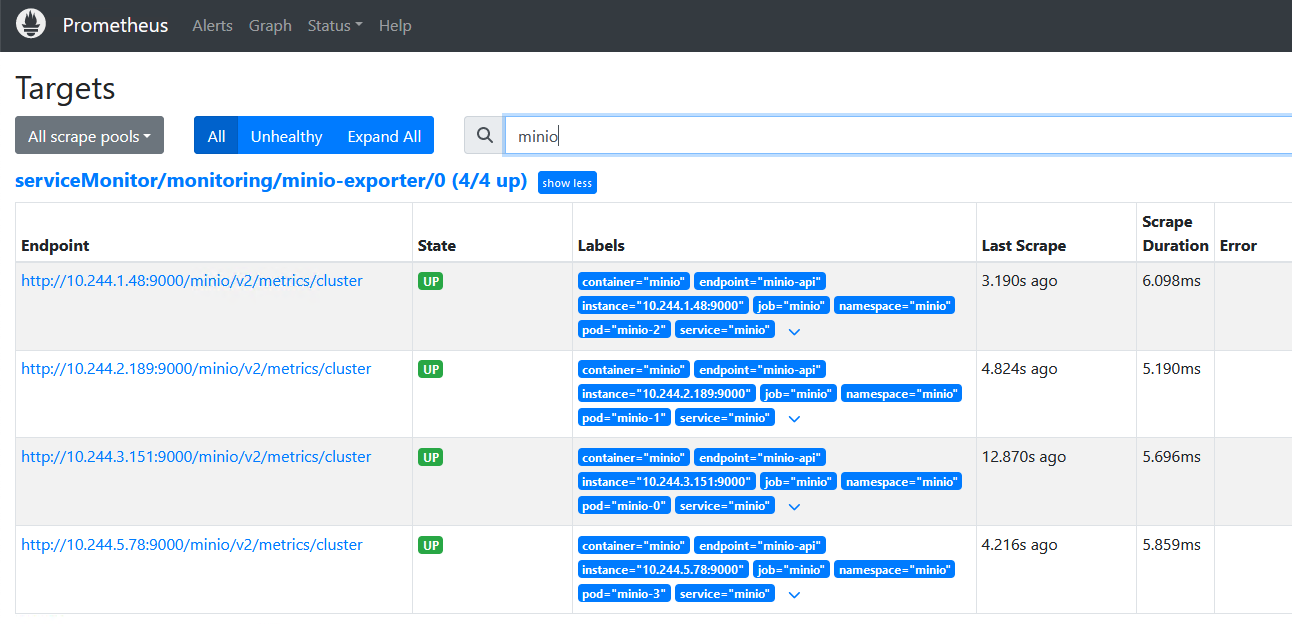

558 #podAnnotations: {} # 导出Prometheus指标
559 podAnnotations:
560   prometheus.io/scrape: "true"
561   prometheus.io/path: "/minio/v2/metrics/cluster"
562   prometheus.io/port: "9000"

1049 persistence:
1052   enabled: true
1060   storageClass: "local-storage"
1063   mountPath: /bitnami/minio/data
1066   accessModes:
1067     - ReadWriteOnce
1070   size: 10Gi
1073   annotations: {}
1076   existingClaim: ""
```

## 部署minIO
```bash
[root@k8s-master minio]# kubectl create ns minio
[root@k8s-master minio]# helm install minio . -f values.yaml -n minio
NAME: minio
LAST DEPLOYED: Tue Apr  2 22:28:03 2024
NAMESPACE: minio
STATUS: deployed
REVISION: 1
TEST SUITE: None
NOTES:
CHART NAME: minio
CHART VERSION: 14.1.4
APP VERSION: 2024.3.30

** Please be patient while the chart is being deployed **

MinIO&reg; can be accessed via port  on the following DNS name from within your cluster:

minio.minio.svc.cluster.local

To get your credentials run:

export ROOT_USER=$(kubectl get secret --namespace minio minio -o jsonpath="{.data.root-user}" | base64 -d)
   export ROOT_PASSWORD=$(kubectl get secret --namespace minio minio -o jsonpath="{.data.root-password}" | base64 -d)

To connect to your MinIO&reg; server using a client:

- Run a MinIO&reg; Client pod and append the desired command (e.g. 'admin info'):

kubectl run --namespace minio minio-client \
     --rm --tty -i --restart='Never' \
     --env MINIO_SERVER_ROOT_USER=$ROOT_USER \
     --env MINIO_SERVER_ROOT_PASSWORD=$ROOT_PASSWORD \
     --env MINIO_SERVER_HOST=minio \
     --image docker.io/bitnami/minio-client:2024.3.30-debian-12-r0 -- admin info minio

To access the MinIO&reg; web UI:

- Get the MinIO&reg; URL:

echo "MinIO&reg; web URL: http://127.0.0.1:9001/minio"
   kubectl port-forward --namespace minio svc/minio 9001:9001

WARNING: There are "resources" sections in the chart not set. Using "resourcesPreset" is not recommended for production. For production installations, please set the following values according to your workload needs:
  - resources
+info https://kubernetes.io/docs/concepts/configuration/manage-resources-containers/
```

## 查看资源信息
```bash
[root@master1 minio]# kubectl get all -n minio
NAME          READY   STATUS    RESTARTS   AGE
pod/minio-0   1/1     Running   0          15s
pod/minio-1   1/1     Running   0          15s
pod/minio-2   1/1     Running   0          15s
pod/minio-3   1/1     Running   0          14s

NAME                     TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)             AGE
service/minio            ClusterIP   10.106.74.147   <none>        9000/TCP,9001/TCP   15s
service/minio-headless   ClusterIP   None            <none>        9000/TCP,9001/TCP   15s

NAME                     READY   AGE
statefulset.apps/minio   4/4     15s
```

## 创建ingress资源
以ingrss-nginx为例：
```bash
# cat > ingress.yaml << EOF
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: minio-ingreess
  namespace: minio
  annotations:
    nginx.ingress.kubernetes.io/rewrite-target: /
spec:
  ingressClassName: nginx
  rules:
  - host: minio.local.com
    http:
      paths:
      - path: /
        pathType: Prefix
        backend:
          service:
            name: minio
            port:
              number: 9001
EOF
```
以traefik为例：
```bash
[root@k8s-master minio]# cat ingress.yaml
apiVersion: traefik.containo.us/v1alpha1
kind: IngressRoute
metadata:
  name: minio-console
  namespace: minio
spec:
  entryPoints:
  - web
  routes:
  - match: Host(`minio.local.com`) # 域名
    kind: Rule
    services:
      - name: minio  # 与svc的name一致
        port: 9001      # 与svc的port一致
---
apiVersion: traefik.containo.us/v1alpha1
kind: IngressRoute
metadata:
  name: minio-api
  namespace: minio
spec:
  entryPoints:
  - web
  routes:
  - match: Host(`minio-api.local.com`) # 域名
    kind: Rule
    services:
      - name: minio  # 与svc的name一致
        port: 9000      # 与svc的port一致
[root@k8s-master minio]# kubectl apply -f ingress.yaml
ingressroute.traefik.containo.us/minio-console created
ingressroute.traefik.containo.us/minio-api created
```

## 获取用户名密码
```bash
# 获取用户名和密码
[root@k8s-master minio]# kubectl get secret --namespace minio minio -o jsonpath="{.data.root-user}" | base64 -d
admin
[root@k8s-master minio]# kubectl get secret --namespace minio minio -o jsonpath="{.data.root-password}" | base64 -d
HWLLGMhgkp
```

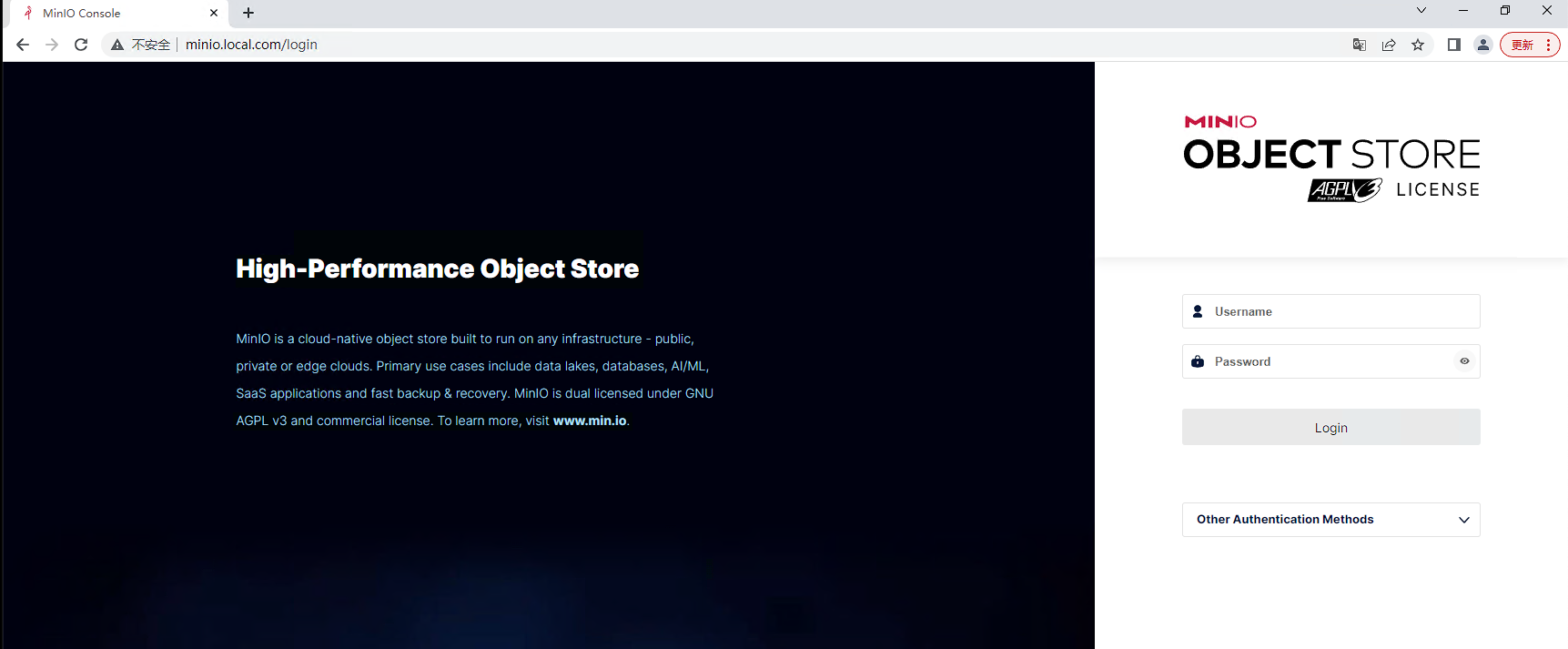

## 访问web管理页

![](/media/202406/2024-06-16_180556_6111530.8017218855425895.png)

# operator部署minIO
参考文档：[https://min.io/docs/minio/kubernetes/upstream/operations/installation.html](https://min.io/docs/minio/kubernetes/upstream/operations/installation.html)

## 安装operator
```bash
[root@master1 ~]# helm repo add minio-operator https://operator.min.io
"minio-operator" has been added to your repositories
[root@master1 ~]# helm search repo minio-operator
NAME                            CHART VERSION   APP VERSION     DESCRIPTION
minio-operator/minio-operator   4.3.7           v4.3.7          A Helm chart for MinIO Operator
minio-operator/operator         5.0.14          v5.0.14         A Helm chart for MinIO Operator
minio-operator/tenant           5.0.14          v5.0.14         A Helm chart for MinIO Operator
[root@master1 ~]# helm install \
--namespace minio-operator \
--create-namespace \
operator minio-operator/operator
NAME: operator
LAST DEPLOYED: Sun Mar 24 21:47:05 2024
NAMESPACE: minio-operator
STATUS: deployed
REVISION: 1
TEST SUITE: None
NOTES:
1. Get the JWT for logging in to the console:
kubectl apply -f - <<EOF
apiVersion: v1
kind: Secret
metadata:
  name: console-sa-secret
  namespace: minio-operator
  annotations:
    kubernetes.io/service-account.name: console-sa
type: kubernetes.io/service-account-token
EOF
kubectl -n minio-operator get secret console-sa-secret -o jsonpath="{.data.token}" | base64 --decode

2. Get the Operator Console URL by running these commands:
  kubectl --namespace minio-operator port-forward svc/console 9090:9090
  echo "Visit the Operator Console at http://127.0.0.1:9090"
[root@master1 ~]# kubectl get all -n minio-operator
NAME                                  READY   STATUS    RESTARTS   AGE
console-658c74c776-mjdq7              1/1     Running   0          3m
minio-operator-5fb5486696-b494r       1/1     Running   0          3m
minio-operator-5fb5486696-txds7       1/1     Running   0          3m

NAME               TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)             AGE
service/console    ClusterIP   10.98.101.3     <none>        9090/TCP,9443/TCP   6s
service/operator   ClusterIP   10.100.70.152   <none>        4221/TCP            6s
service/sts        ClusterIP   10.109.22.187   <none>        4223/TCP            6s

NAME                             READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/console          1/1     1            1           39m
deployment.apps/minio-operator   2/2     2            2           39m

NAME                                        DESIRED   CURRENT   READY   AGE
replicaset.apps/console-59cbf8fbfb          1         1         1       6s
replicaset.apps/minio-operator-6868bf476d   2         2         2       6s
```

## 访问控制台
创建ingress资源，以traefik为例
```yaml
apiVersion: traefik.containo.us/v1alpha1
kind: IngressRoute
metadata:
  name: minio-console
  namespace: minio-operator
spec:
  entryPoints:
  - web
  routes:
  - match: Host(`minio.local.com`) # 域名
    kind: Rule
    services:
      - name: console  # 与svc的name一致
        port: 9090      # 与svc的port一致
```
获取token
```bash
[root@tiaoban minio]# kubectl get secret/console-sa-secret -n minio-operator -o json | jq -r ".data.token" | base64 -d
eyJhbGciOiJSUzI1NiIsImtpZCI6IkJqajJ5XzA1LTdjWmhWWTJhUWdtNW5pMHJsejI4Z0d5MjlsWHg1YjF3NG8ifQ.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJtaW5pby1vcGVyYXRvciIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJjb25zb2xlLXNhLXNlY3JldCIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VydmljZS1hY2NvdW50Lm5hbWUiOiJjb25zb2xlLXNhIiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZXJ2aWNlLWFjY291bnQudWlkIjoiZTA2NmRjOTQtMmI5NS00ODllLTk1MzQtNDdjNTY5MzI0YjQxIiwic3ViIjoic3lzdGVtOnNlcnZpY2VhY2NvdW50Om1pbmlvLW9wZXJhdG9yOmNvbnNvbGUtc2EifQ.0828UMXxhkESZtTo6xUtJRDqHf8ksVNGUVOZas7dIMCPeF9Z2nLZDySMFXBc4qYUb-qGEw5YT0JYxhz_B82Cy-Lg05RaawCmFWlf4Q5O57xdOZ66sUJffRNprqd4uzLejvirtwgzpD6ddiIg4HVN107VIy--S-A-OTbvbrSWtO95GIu4eNG5pM0YALrYAXPuDbBzRsQ9DHjH9dEoXsJW_yhwmlMoIm4Qi4RR4SSRBuVVRvU38DGvg2eZjveSDDJiozOLuGvw3HTPHuamdneEpdfQzCysMEkUm0eZa_uG-5aoSINd7peB9CBPkSx91tM3aX4E1lyN6Q5SVmr3v7o31w
```

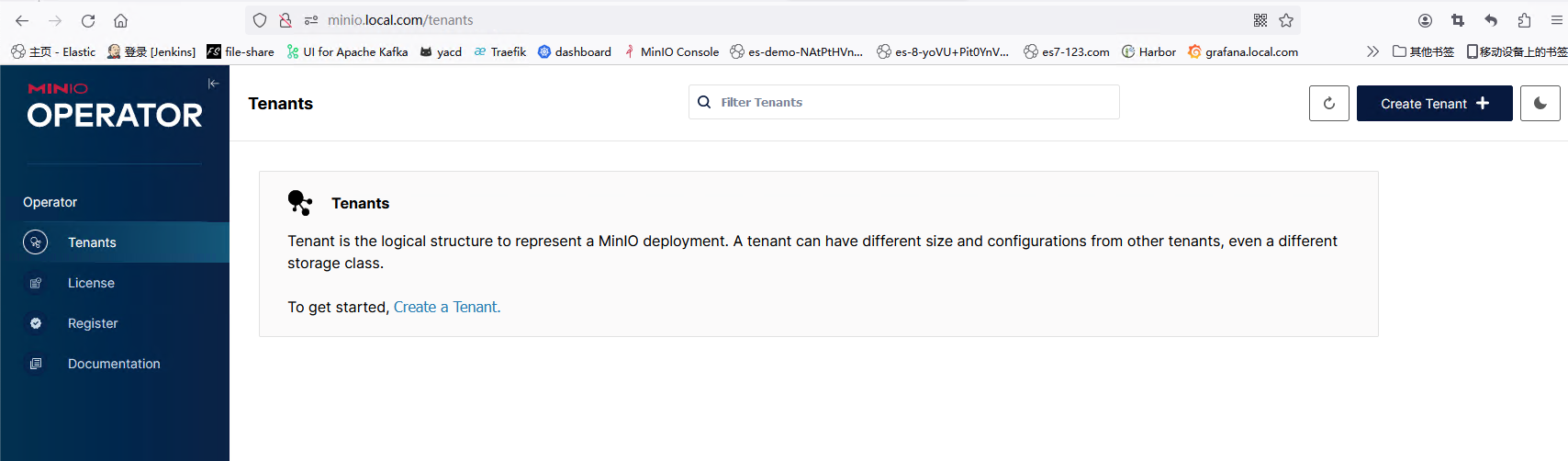

浏览器访问minio

![](/media/202406/2024-06-16_180638_6394140.4640825160317651.png)

## helm创建租户
拉取helm包
```bash
[root@master1 ~]# helm pull minio-operator/tenant --untar
[root@master1 ~]# cd tenant/
[root@master1 tenant]# ls
Chart.yaml  README.md  templates  values.yaml
```
修改values.yaml
```bash
39 tenant:
44   name: k8s-minio

68   image:
69     repository: harbor.local.com/minio
70     tag: RELEASE.2024-03-21T23-13-43Z

91   pools:
96     - servers: 4            # 服务器数
102      volumesPerServer: 1   # 每个服务器节点数
105      size: 10Gi            # 每个节点大小
112      storageClassName: local-storage
```
安装helm
```bash
[root@master1 tenant]# helm install tenant . -f values.yaml -n minio
NAME: tenant
LAST DEPLOYED: Sun Mar 24 23:12:11 2024
NAMESPACE: minio
STATUS: deployed
REVISION: 1
TEST SUITE: None
NOTES:
To connect to the k8s-minio tenant if it doesn't have a service exposed, you can port-forward to it by running:

kubectl --namespace minio port-forward svc/k8s-minio-console 9443:9443

Then visit the MinIO Console at https://127.0.0.1:9443
```

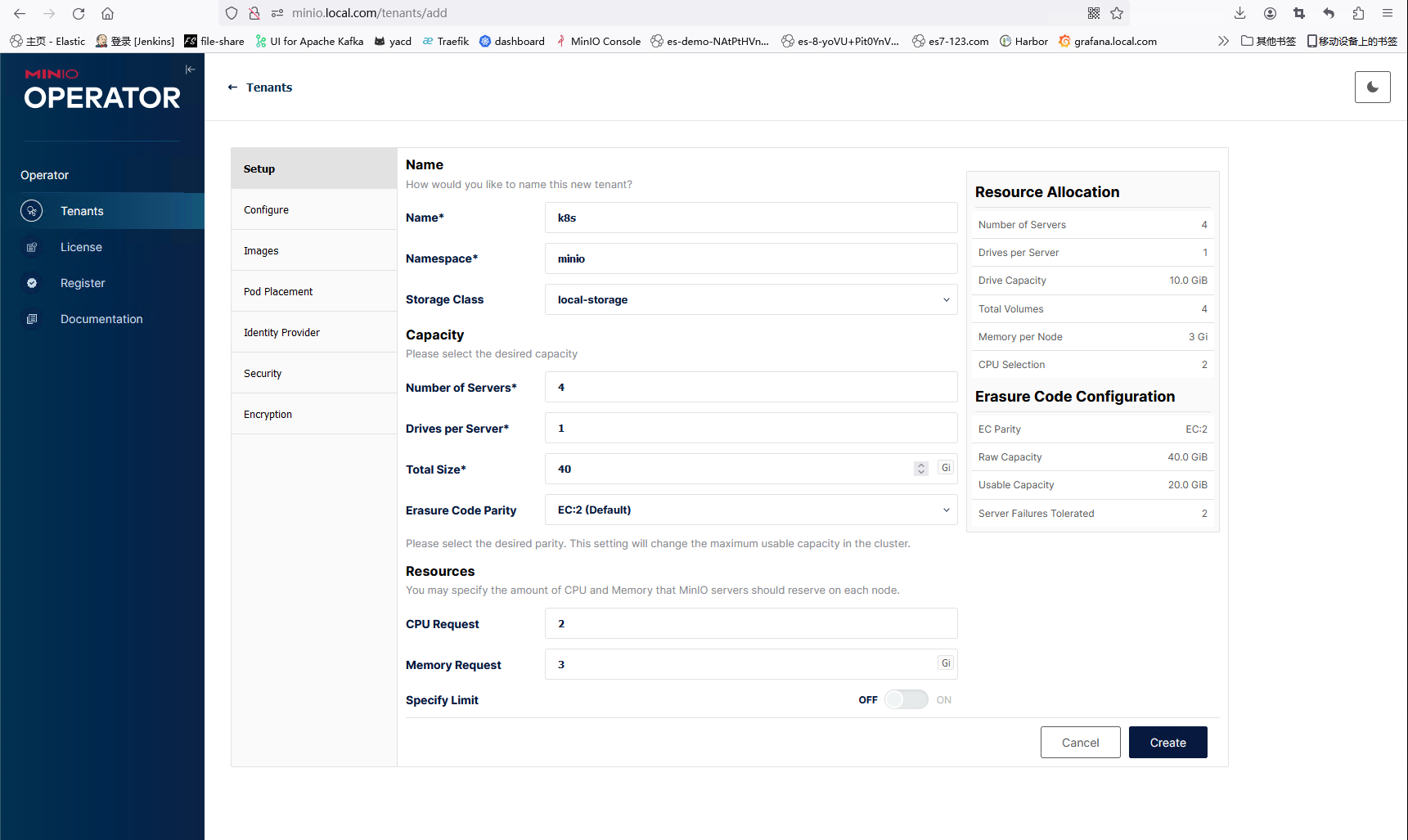

## web页面创建租户

![](/media/202406/2024-06-16_180738_1244720.8114955225318915.png)

# Prometheus Operator添加监控

## 访问metrics接口验证
```bash
[root@master1 minio]# kubectl get svc -n minio
NAME             TYPE        CLUSTER-IP     EXTERNAL-IP   PORT(S)             AGE
minio            ClusterIP   10.103.75.63   <none>        9000/TCP,9001/TCP   71m
minio-headless   ClusterIP   None           <none>        9000/TCP,9001/TCP   71m
[root@rocky /]# curl http://10.103.75.63:9000/minio/v2/metrics/cluster
# HELP minio_audit_failed_messages Total number of messages that failed to send since start
# TYPE minio_audit_failed_messages counter
minio_audit_failed_messages{server="minio-0.minio-headless.minio.svc.cluster.local:9000",target_id="sys_console_0"} 0
minio_audit_failed_messages{server="minio-1.minio-headless.minio.svc.cluster.local:9000",target_id="sys_console_0"} 0
minio_audit_failed_messages{server="minio-2.minio-headless.minio.svc.cluster.local:9000",target_id="sys_console_0"} 0
minio_audit_failed_messages{server="minio-3.minio-headless.minio.svc.cluster.local:9000",target_id="sys_console_0"} 0
# HELP minio_audit_target_queue_length Number of unsent messages in queue for target
# TYPE minio_audit_target_queue_length gauge
minio_audit_target_queue_length{server="minio-0.minio-headless.minio.svc.cluster.local:9000",target_id="sys_console_0"} 0
minio_audit_target_queue_length{server="minio-1.minio-headless.minio.svc.cluster.local:9000",target_id="sys_console_0"} 0
minio_audit_target_queue_length{server="minio-2.minio-headless.minio.svc.cluster.local:9000",target_id="sys_console_0"} 0
minio_audit_target_queue_length{server="minio-3.minio-headless.minio.svc.cluster.local:9000",target_id="sys_console_0"} 0
…………
```

## 新增svc标签
```bash
[root@master1 minio]# kubectl edit svc -n minio minio
apiVersion: v1
kind: Service
metadata:
  annotations:
    meta.helm.sh/release-name: minio
    meta.helm.sh/release-namespace: minio
  creationTimestamp: "2024-03-24T07:52:49Z"
  labels:
    app: minio # 新增labels标签
```

## 新增ServiceMonitor
```bash
[root@master1 minio]# cat ServiceMonitor.yaml
apiVersion: monitoring.coreos.com/v1
kind: ServiceMonitor
metadata:
  name: minio-exporter  # ServiceMonitor名称
  namespace: monitoring # ServiceMonitor所在名称空间
spec:
  jobLabel: minio # job名称
  endpoints:  # prometheus所采集Metrics地址配置，endpoints为一个数组，可以创建多个，但是每个endpoints包含三个字段interval、path、port
    - interval: 30s # prometheus采集数据的周期，单位为秒
      path: /minio/v2/metrics/cluster # prometheus采集数据的路径
      port: minio-api # prometheus采集数据的端口，这里为port的name，主要是通过spec.selector中选择对应的svc，在选中的svc中匹配该端口
      scheme: http # 协议
  namespaceSelector: # 需要发现svc的范围
    matchNames:
    - minio
  selector:
    matchLabels:  # 选择svc的标签
      app: minio
```

## Prometheus targets验证

![](/media/202406/2024-06-16_180751_2653320.6583833891242447.png)

# minIO使用

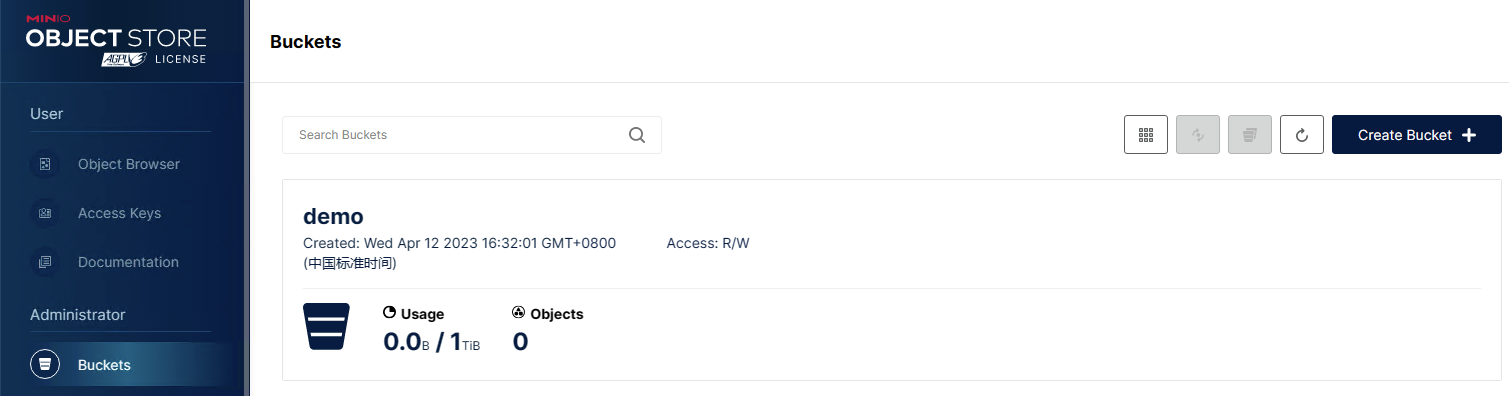

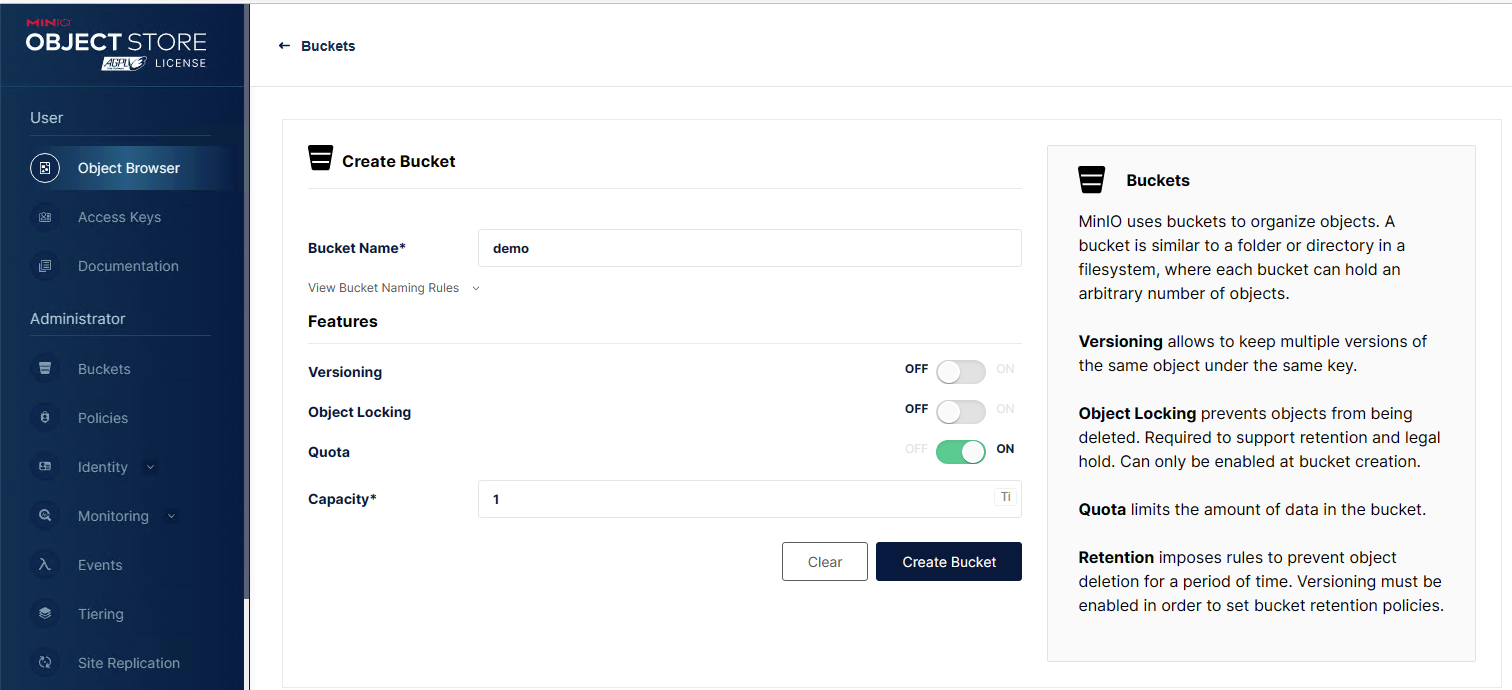

## 创建bucket

![](/media/202406/2024-06-16_180808_8484010.4623786778375091.png)

![](/media/202406/2024-06-16_180816_5271540.6445682675619242.png)

![](/media/202406/2024-06-16_180825_1820820.47754004453230703.png)

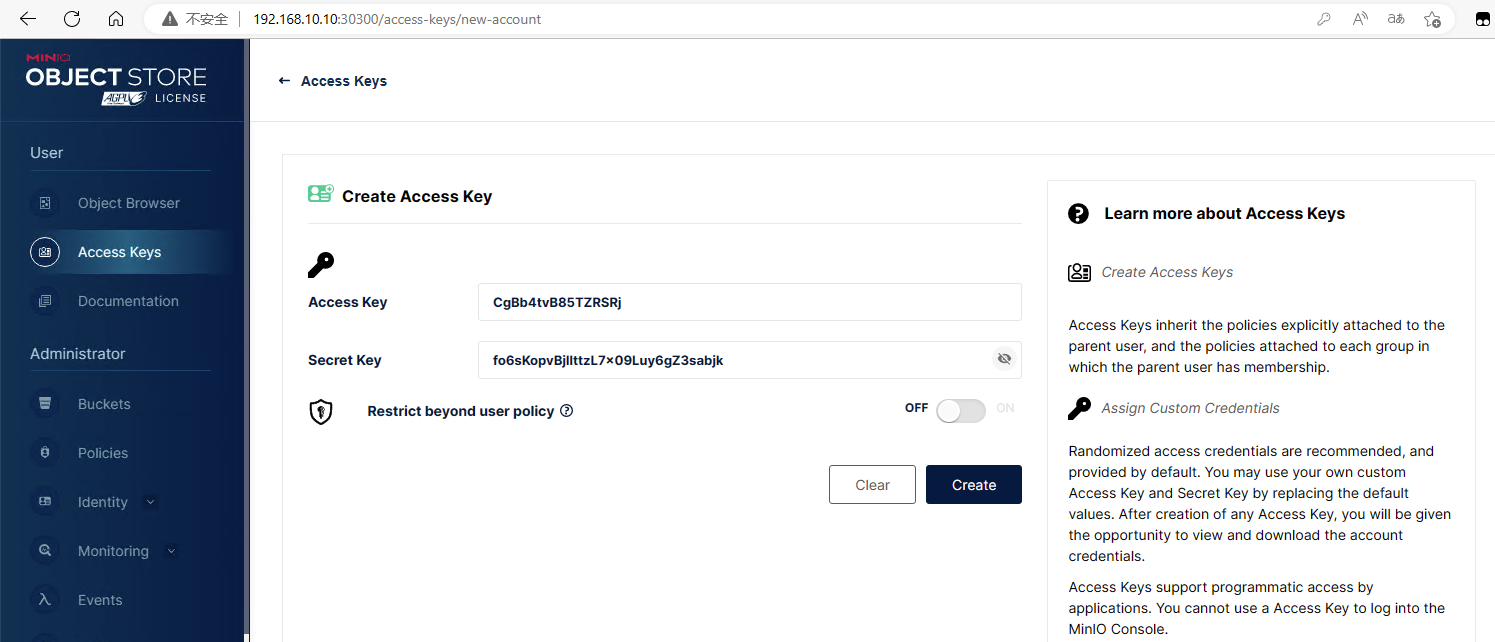

## 创建Access Keys

![](/media/202406/2024-06-16_180834_4365060.934187877737821.png)

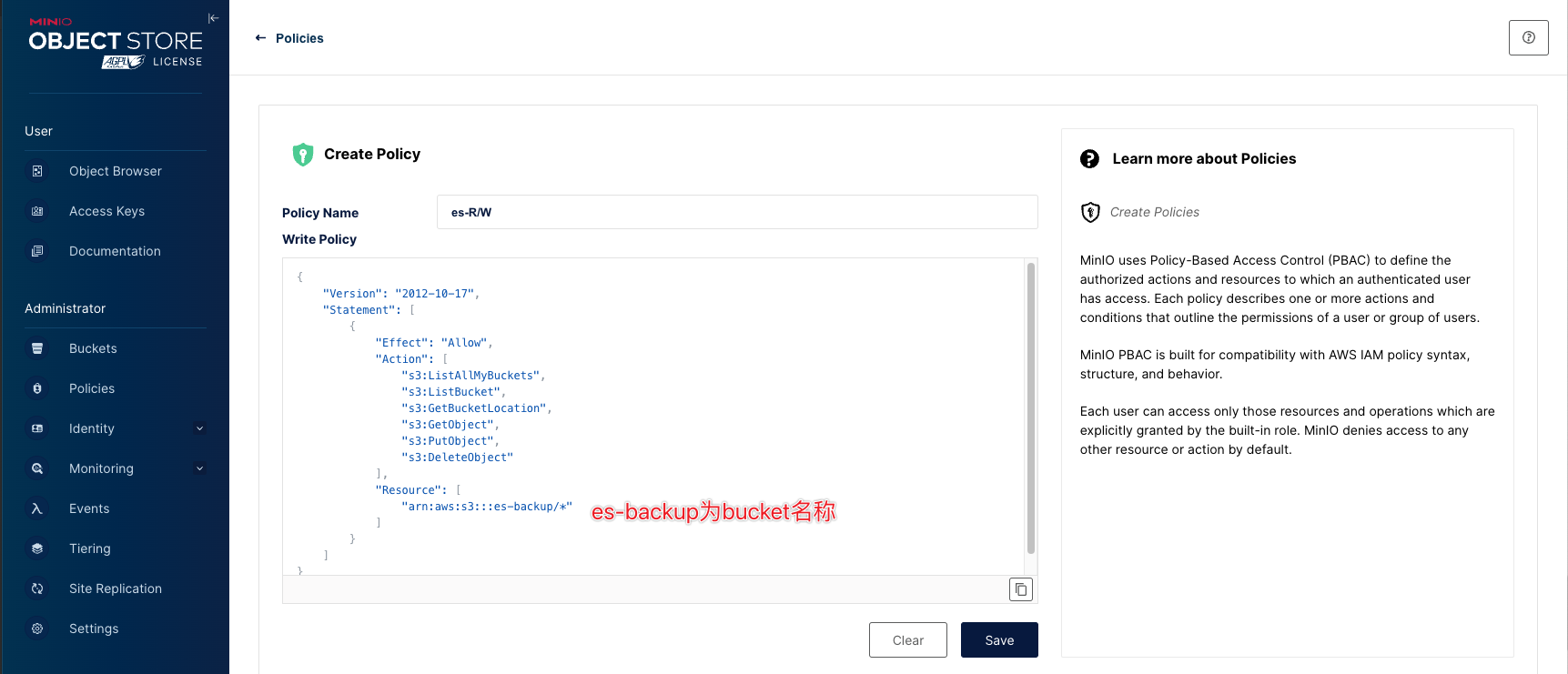

## 创建访问控制权限
Minio 的存储桶默认是不跟任何 Acess Key 关联的，不过由于 Minio 支持标准的 S3 协议，我们可以给 Access Key 授予某个 Bucket 存储桶的访问权限，实现 Key 和 Bucket 的绑定。<br />创建policy<br />!
![](/media/202406/2024-06-16_180843_8519110.5129291232419969.png)
```yaml
{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Action": [
                "s3:ListAllMyBuckets",
                "s3:ListBucket",
                "s3:GetBucketLocation",
                "s3:GetObject",
                "s3:PutObject",
                "s3:DeleteObject"
            ],
            "Resource": [
                "arn:aws:s3:::es-backup/*"
            ]
        }
    ]
}
```

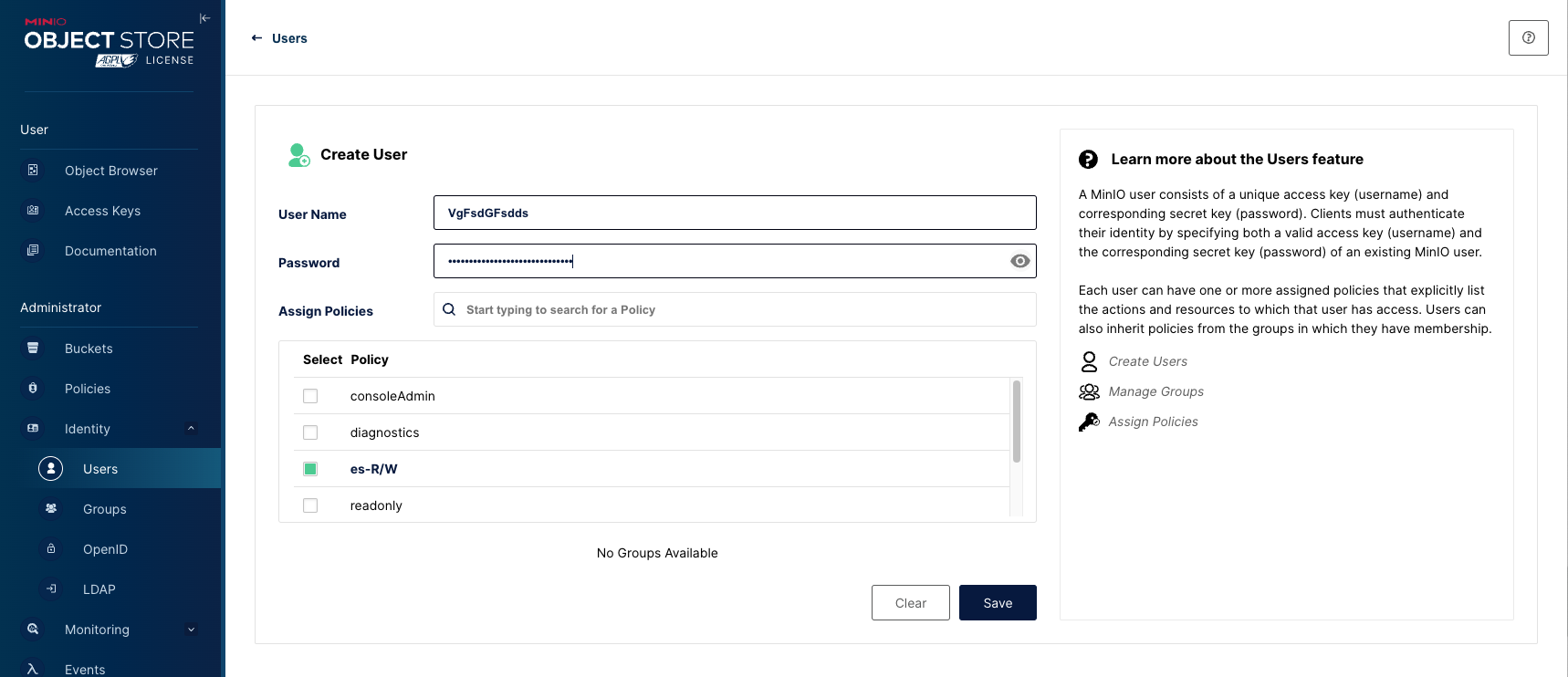

创建user
这里 Access Key 是用户名，Access Secret 是对应的口令。设置时关联上刚才创建的 Policy 即可。

![](/media/202406/2024-06-16_180941_4610080.9417410392242098.png)

我们就创建了一个新的存储桶，并且给这个存储桶设置了一个用户，同时授权了用户对存储桶的访问，包括列表、上传、下载这几个基本权限。

# mc客户端使用
MinIO Client (mc)为ls，cat，cp，mirror，diff，find等UNIX命令提供了一种替代方案。它支持文件系统和兼容Amazon S3的云存储服务（AWS Signature v2和v4）。

## 安装mc客户端（Linux二进制文件）
```bash
[root@k8s-master minio]# curl https://dl.min.io/client/mc/release/linux-amd64/mc --create-dirs -o /usr/local/minio-binaries/mc
[root@k8s-master local]# cd /usr/local/minio-binaries
[root@k8s-master minio-binaries]# ls
mc
[root@k8s-master minio-binaries]# chmod +x mc
[root@k8s-master minio-binaries]# ./mc --help
──────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────── (q)uit/esc
NAME:
  mc - MinIO Client for object storage and filesystems.

USAGE:
  mc [FLAGS] COMMAND [COMMAND FLAGS | -h] [ARGUMENTS...]
# 添加环境变量
[root@k8s-master minio-binaries]# cat /etc/profile
export PATH="$PATH:/usr/local/minio-binaries"
[root@k8s-master minio-binaries]# source /etc/profile
[root@k8s-master minio-binaries]# mc --help
──────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────── (q)uit/esc
  mc [FLAGS] COMMAND [COMMAND FLAGS | -h] [ARGUMENTS...]
```

## 安装mc客户端（docker）
```bash
[root@tiaoban ~]# docker run -it --rm minio/mc ls play
mc: Configuration written to `/root/.mc/config.json`. Please update your access credentials.
mc: Successfully created `/root/.mc/share`.
mc: Initialized share uploads `/root/.mc/share/uploads.json` file.
mc: Initialized share downloads `/root/.mc/share/downloads.json` file.
[2023-04-13 01:39:27 UTC]     0B 64375d4bed2b146c15d5383f-files/
[2023-03-15 11:55:17 UTC]     0B abc/
[2023-03-31 18:46:54 UTC]     0B awdkenny/
```

## mc客户端常用命令
| 命令 | 功能 |
| --- | --- |
| ls | 列出文件和文件夹。 |
| mb | 创建一个存储桶或一个文件夹。 |
| cat | 显示文件和对象内容。 |
| pipe | 将一个STDIN重定向到一个对象或者文件或者STDOUT。 |
| share | 生成用于共享的URL。 |
| cp | 拷贝文件和对象。 |
| mirror | 给存储桶和文件夹做镜像。 |
| find | 基于参数查找文件。 |
| diff | 对两个文件夹或者存储桶比较差异。 |
| rm | 删除文件和对象。 |
| events | 管理对象通知。 |
| watch | 监视文件和对象的事件。 |
| policy | 管理访问策略。 |
| config | 管理mc配置文件。 |
| update | 检查软件更新。 |
| version | 输出版本信息。 |

## mc连接minIO服务
```bash
# 添加对象存储服务
[root@k8s-master minio-binaries]# mc alias set k8s-minio http://10.102.223.132:9000 minioadmin minioadmin
Added `k8s-minio` successfully.
[root@k8s-master minio-binaries]# mc admin info k8s-minio
●  10.102.223.132:9000
   Uptime: 41 minutes
   Version: 2023-04-07T05:28:58Z
   Network: 1/1 OK
   Drives: 1/1 OK
   Pool: 1

Pools:
   1st, Erasure sets: 1, Drives per erasure set: 1

12 MiB Used, 1 Bucket, 2 Objects
1 drive online, 0 drives offline
```

## bucket操作
```bash
# 创建bucket
[root@k8s-master ~]# mc mb k8s-minio/test
Bucket created successfully `k8s-minio/test`.
# 查看bucket
[root@k8s-master ~]# mc ls k8s-minio
[2023-04-13 10:02:02 CST]     0B test/

# 删除没有文件的bucket
[root@k8s-master ~]# mc rb k8s-minio/demo
# 删除有文件的bucket
[root@k8s-master ~]# mc rb k8s-minio/test --force
```

## 上传下载操作
```bash
# 上传文件到bucket
[root@k8s-master ~]# mc cp /etc/hosts k8s-minio/test
/etc/hosts:                   2.09 KiB / 2.09 KiB ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 60.07 KiB/s 0s[root@k8s-master ~]# mc cp /etc/yum.repos.d k8s-minio/test
# 上传目录到bucket
[root@k8s-master ~]# mc cp /etc/yum.repos.d k8s-minio/test --recursive
...m.repos.d/kubernetes.repo: 19.46 KiB / 19.46 KiB ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 121.99 KiB/s 0s

# 下载bucket文件到本地
[root@k8s-master ~]# mkdir /tmp/download
[root@k8s-master ~]# mc cp k8s-minio/test/hosts /tmp/download/
...2.223.132:9000/test/hosts: 2.09 KiB / 2.09 KiB ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 66.18 KiB/s 0s[root@k8s-master ~]# ls /tmp/download/
hosts
[root@k8s-master ~]# cat /tmp/download/hosts
127.0.0.1   localhost localhost.localdomain localhost4 localhost4.localdomain4
::1         localhost localhost.localdomain localhost6 localhost6.localdomain6
# 下载bucket目录到本地
[root@k8s-master ~]# mc cp k8s-minio/test/yum.repos.d /tmp/download/ --recursive
...m.repos.d/kubernetes.repo: 19.46 KiB / 19.46 KiB ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 87.10 KiB/s 0s[root@k8s-master ~]# ls /tmp/download/yum.repos.d/
docker-ce.repo     epel-testing-modular.repo  Rocky-AppStream.repo
```

## 文件操作
```bash
# 查看bucket文件列表
[root@k8s-master ~]# mc ls k8s-minio/test
[2023-04-13 10:04:59 CST] 2.1KiB STANDARD hosts
[2023-04-13 10:10:42 CST]     0B yum.repos.d/
# 查看bucket目录内容
[root@k8s-master ~]# mc ls k8s-minio/test/yum.repos.d
[2023-04-13 10:05:34 CST]   710B STANDARD Rocky-AppStream.repo
[2023-04-13 10:05:34 CST]   695B STANDARD Rocky-BaseOS.repo
[2023-04-13 10:05:34 CST] 1.7KiB STANDARD Rocky-Debuginfo.repo
[2023-04-13 10:05:34 CST]   360B STANDARD Rocky-Devel.repo
# 查看bucket文件内容
[root@k8s-master ~]# mc cat k8s-minio/test/hosts
127.0.0.1   localhost localhost.localdomain localhost4 localhost4.localdomain4
::1         localhost localhost.localdomain localhost6 localhost6.localdomain6

# 删除文件
[root@k8s-master ~]# mc rm k8s-minio/test/hosts
Removed `k8s-minio/test/hosts`.
# 删除目录
[root@k8s-master ~]# mc rm k8s-minio/test/yum.repos.d --recursive --force
Removed `k8s-minio/test/yum.repos.d/Rocky-AppStream.repo`.
Removed `k8s-minio/test/yum.repos.d/Rocky-BaseOS.repo`.
Removed `k8s-minio/test/yum.repos.d/Rocky-Debuginfo.repo`.
Removed `k8s-minio/test/yum.repos.d/Rocky-Devel.repo`.
```

# curl客户端使用

## 上传文件
上传文件脚本，按实际情况修改host、s3_key、s3_secret和-x
```bash
[root@tiaoban ~]# cat push.sh
#!/bin/bash
export PATH=$PATH:/bin:/usr/bin:/usr/local/bin
if [ $# != 2 ] ; then
echo "Usage: `basename $0` my-bucket my-file.zip" >&2
exit 1
fi
bucket=$1
file=$2
host=minio-api.test.com
s3_key=GfuHooI5byVpGf2RGwl3
s3_secret=YpYqXKKhI4bNUmWWULa3qf5n5WPq3TDedb1uzREc
resource="/${bucket}/${file}"
content_type="application/zstd"
date=`date -R`
_signature="PUT\n\n${content_type}\n${date}\n${resource}"
signature=`echo -en ${_signature} | openssl sha1 -hmac ${s3_secret} -binary | base64`

curl -v -X PUT -T "${file}" \
          -H "Host: ${host}" \
          -x "192.168.10.10:80" \
          -H "Date: ${date}" \
          -H "Content-Type: ${content_type}" \
          -H "Authorization: AWS ${s3_key}:${signature}" \
          http://${host}${resource}
```
上传文件
```bash
[root@tiaoban ~]# ls
anaconda-ks.cfg  cfssl  defaults.ini  es  go  push.sh
[root@tiaoban ~]# ./push.sh test defaults.ini
*   Trying 192.168.10.10...
* TCP_NODELAY set
* Connected to 192.168.10.10 (192.168.10.10) port 80 (#0)
> PUT http://minio-api.test.com/test/defaults.ini HTTP/1.1
> Host: minio-api.test.com
> User-Agent: curl/7.61.1
> Accept: */*
> Proxy-Connection: Keep-Alive
> Date: Sat, 06 May 2023 10:10:07 +0800
> Content-Type: application/zstd
> Authorization: AWS bhUsp7nwc6XNPzoI:w2ddmcsQWOijC2BZJSGE4u7DgFc=
> Content-Length: 55875
> Expect: 100-continue
>
< HTTP/1.1 100 Continue
* We are completely uploaded and fine
< HTTP/1.1 200 OK
< Accept-Ranges: bytes
< Content-Length: 0
< Content-Security-Policy: block-all-mixed-content
< Date: Sat, 06 May 2023 02:10:07 GMT
< Etag: "1b0bdd8f4c5f31ef5661380efcaefce5"
< Server: MinIO
< Strict-Transport-Security: max-age=31536000; includeSubDomains
< Vary: Origin
< Vary: Accept-Encoding
< X-Amz-Id-2: e3b0c44298fc1c149afbf4c8996fb92427ae41e4649b934ca495991b7852b855
< X-Amz-Request-Id: 175C6BE8ACF79B53
< X-Content-Type-Options: nosniff
< X-Xss-Protection: 1; mode=block
<
* Connection #0 to host 192.168.10.10 left intact
```

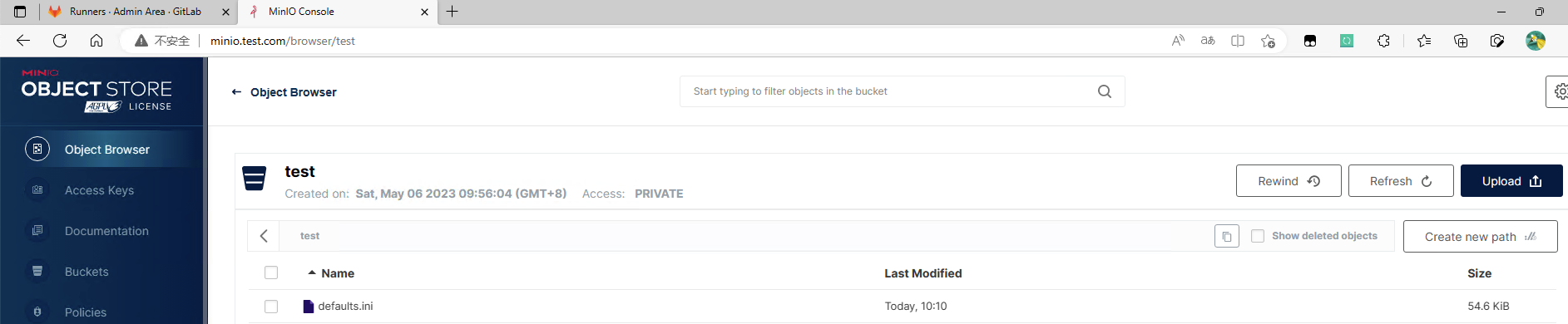

查看bucket文件

![](/media/202406/2024-06-16_181014_6956950.6552198107475912.png)

## 下载文件
下载文件脚本
```bash
#!/usr/bin/env sh
if [ $# != 3 ] ; then
echo "Usage: `basename $0` my-bucket minio-filename localfile" >&2
echo "Usage: `basename $0` test-bucket 1.log /tmp/1.log" >&2
exit 1
fi
# User Minio Vars
host=minio-api.test.com
s3_key=bhUsp7nwc6XNPzoI
s3_secret=w3KBPxMZ5Nw4apRGZY3uAHON7bkkKprP
BUCKET=$1
MINIO_PATH="/${BUCKET}/$2"
OUT_FILE=$3
# Static Vars
DATE=$(date -R)
CONTENT_TYPE='application/zstd'
SIG_STRING="GET\n\n${CONTENT_TYPE}\n${DATE}\n${MINIO_PATH}"
SIGNATURE=`echo -en ${SIG_STRING} | openssl sha1 -hmac ${s3_secret} -binary | base64`

curl -v -o "${OUT_FILE}" \
    -x "192.168.10.10:80" \
    -H "Host: $host" \
    -H "Date: ${DATE}" \
    -H "Content-Type: ${CONTENT_TYPE}" \
    -H "Authorization: AWS ${s3_key}:${SIGNATURE}" \
    http://$URL${MINIO_PATH}
```
下载文件
```bash
[root@tiaoban ~]# ./pull.sh test defaults.ini /tmp/defaults.ini
*   Trying 192.168.10.10...
* TCP_NODELAY set
  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                 Dload  Upload   Total   Spent    Left  Speed
  0     0    0     0    0     0      0      0 --:--:-- --:--:-- --:--:--     0* Connected to 192.168.10.10 (192.168.10.10) port 80 (#0)
> GET http://minio-api.test.com/test/defaults.ini HTTP/1.1
> Host: minio-api.test.com
> User-Agent: curl/7.61.1
> Accept: */*
> Proxy-Connection: Keep-Alive
> Date: Sat, 06 May 2023 10:17:18 +0800
> Content-Type: application/zstd
> Authorization: AWS bhUsp7nwc6XNPzoI:sl8feCFiJC4MpaKSKrGU9HlDMLw=
>
< HTTP/1.1 200 OK
< Accept-Ranges: bytes
< Content-Length: 55875
< Content-Security-Policy: block-all-mixed-content
< Content-Type: application/zstd
< Date: Sat, 06 May 2023 02:17:18 GMT
< Etag: "1b0bdd8f4c5f31ef5661380efcaefce5"
< Last-Modified: Sat, 06 May 2023 02:10:07 GMT
< Server: MinIO
< Strict-Transport-Security: max-age=31536000; includeSubDomains
< Vary: Origin
< Vary: Accept-Encoding
< X-Amz-Id-2: e3b0c44298fc1c149afbf4c8996fb92427ae41e4649b934ca495991b7852b855
< X-Amz-Request-Id: 175C6C4CF3EB56C4
< X-Content-Type-Options: nosniff
< X-Xss-Protection: 1; mode=block
<
{ [3529 bytes data]
100 55875  100 55875    0     0  1474k      0 --:--:-- --:--:-- --:--:-- 1515k
* Connection #0 to host 192.168.10.10 left intact
```
```
[root@tiaoban ~]# ls -lh /tmp/defaults.ini
-rw-r--r-- 1 root root 55K 5月   6 10:17 /tmp/defaults.ini
```
